Voicent Gateway C++ Simple
Interface
The Voicent C++ Simple Interface class contains the following functions.
Since all these functions are implemented as a HTTP client
communicating directly with Voicent Gateway, they can be run on
any machine that has a connection to the host running the gateway.
The C++ interface source code is
included at the end of this section.

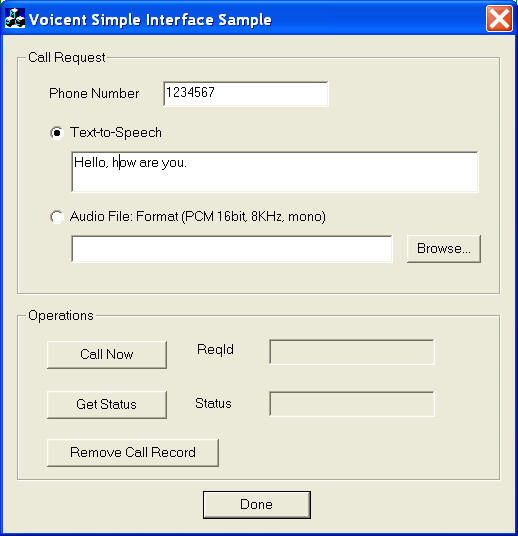

A Sample SimpleCall using this
interface class is also provided.
This C++ Simple Interface is developed based on
Voicent Gateway Simple Outbound Call
Interface.
Comparing with the SDK C++ API, this interface is quite
limited.
Work with Interactive Applications
For many applications, it is desirable to get responses from
callees in addition to deliver a message. The interaction can be implemented by using the low level gateway VoiceXML interface. However, using the low level API is a time consuming and error prone task. A better solution is to utilize Voicent IVR Studio to create an interactive application, and use the extended Simple Call Interface to trigger a phone call.
SYNOPSIS
-
CString
CallText(const
char* phoneno, const char* text, BOOL selfdelete = false)
DESCRIPTION
- Make a phone call and play the specified text message. The
text message is convert to voice by Voicent Gateway's
text-to-speech engine.
- The options are:
-
phoneno |
The phone number to call |
text |
The message for the phone call |
selfdelete |
Ask the gateway to automatically delete the
call request after the call is made if it is set to '1' |
The return value is the call request id <reqId>.
EXAMPLE
- CallText("123-4567", "Hello, how are you doing", 1);
Make a call to phone number '123-4567' and say 'Hello, how are
you doing'. Since the selfdelete
bit is set, the call request record in the gateway will be
removed automatically after the call.
- CString reqId =
CallText("123-4567", "Hello, how are you", 0);
- Make a call to phone number '123-4567' and say 'Hello, how
are you'. Since the selfdelete
bit is not set, the call request record in the gateway will not
be removed after the call. You can then use
CallStatus to get the call status, or use
CallRemove to remove the call record.
SYNOPSIS
- CString
CallAudio(const char* phoneno, const char* audiofile, BOOL selfdelete
= false)
DESCRIPTION
- Make a phone call and play the specified audio message.
- The options are:
-
phoneno |
The phone number to call |
audiofile |
The audio message for the phone call. The
format must be PCM 16bit, 8KHz, mono wave file. The audio
file must be on the same host as Voicent Gateway. |
selfdelete |
Ask the gateway to automatically delete the
call request after the call is made if it is set to '1' |
The return value is the call request id <reqId>.
EXAMPLE
-
CallAudio("123-4567", "C:\my audios\hello.wav", 1);
Make a call to phone number '123-4567' and play the hello.wav
file. Since the selfdelete
bit is set, the call request record in the gateway will be
removed automatically after the call.
- CString reqId =
CallAudio("123-4567", "C:\my audios\hello.wav", 0);
- Make a call to phone number '123-4567' and play the
hello.wav file. Since the selfdelete
bit is not set, the call request record in the gateway will not
be removed after the call. You can then use
CallStatus to get the call status, or use
CallRemove to remove the call record.
-
SYNOPSIS
- CString
CallStatus(const char* reqId)
DESCRIPTION
- Check the call status of the call with <reqId>.
If the call is made, the return value is
'Call Made',
or if the call is failed, the return value is
'Call Failed',
or if the call will retry, the return value is "Call Will
Retry", and for any other status, the return value is
"".
Please note that an empty string is returned if the call is
still in progress. You'll need to wait and then poll the status
again.
EXAMPLE
- CString status =
CallStatus("11234035434");
-
SYNOPSIS
- void
CallRemove(const char* reqId)
DESCRIPTION
- Remove the call record of the call with reqId.
If the call is not made yet, it will be removed also.
EXAMPLE
-
CallRemove("11234035434");
-
SYNOPSIS
-
void CallTillConfirm(cosnt char* vcastexe, const char*
vocfile, const char* confirmcode, const char* wavfile)
DESCRIPTION
- Keep calling a list of people until anyone enters the
confirmation code. The message is the specified audio file. This
is ideal for using it in a phone notification escalation
process.
To use this feature, Voicent BroadcastByPhone Professional
version has to be installed. This function is similar to the
command line interface BroadcastByPhone has. But since the
command cannot be invoke over a remote machine, this perl
function uses the gateway to schedule an event, which in turn
invokes the command on the gateway host.
The options are:
vcastexe |
The BroadcastByPhone program. It is usually
'C:\Program Files\Voicent\BroadcastByPhone\bin\vcast.exe' on the
gateway host. |
vocfile |
The BroadcastByPhone call list to use. |
confirmcode |
The confirmation code use for the broadcast |
wavfile |
The audio file to use for the broadcast |
EXAMPLE
-
CallTillConfirm(
"C:\Program Files\Voicent\BroadcastByPhone\bin\vcast.exe",
"C:\My calllist\escalation.voc",
"911911",
"C:\My calllist\escalation.wav");
-
This will invoke BroadcastByPhone program on the gateway host
and start calling everyone one the call list defined in
'C:\My calllist\escalation.voc'. The audio message played
is 'C:\My
calllist\escalation.wav'. And as soon as anyone on the
list enters the confirmation code
'911911', the call will stop automatically.
-
The following Voicent class is included in the sample
SimpleCall.
---------------
File Voicent.h:
---------------
class Voicent
{
public:
Voicent(const char* host, int port);
~Voicent();
// ** Standard Operations **
// Call Request. Return reqId of this call record on the gateway
CString CallText(
const char* phoneno, // phone number
const char* text, // text message using
text-to-speech
BOOL selfDelete = false); // delete call record after call
made
// Call Request. Return reqId of this call record on the gateway
CString CallAudio(
const char* phoneno, // phone number
const char* wavfile, // audio file to play (PCM 16bit, 8KHz,
mono)
BOOL selfDelete = false); // delete call record after call
made
// Get call status
CString CallStatus(const char*
reqId); // Call record reqId
// Remove call record
void CallRemove(const char* reqId);
// Call record ReqId
// ** BroadcastByPhone **
// Invoke BroadcastByPhone
void CallTillConfirm(
const char* vcastexe, // BroadcastByPhone executable path
const char* vocfile, // Broadcast file
const char* ccode, // confirmation code
const char* wavfile); // audio file (PCM 16bit, 8KHz, mono)
private:
CString m_host;
int m_port;
};
-----------------
File voicent.cpp:
-----------------
#include "stdafx.h"
#include "afxinet.h"
#include "voicent.h"
///////////////////////////////////////////////////////////////
// Utility Routines
// simple URLEncoding
static CString URLEncode(CString
ToCode)
{
int max = (unsigned int)ToCode.GetLength();
CString RetStr;
for(int i=0;i<max;i++) {
unsigned char c = ToCode[i];
unsigned short asc = c;
if(asc > 47 && asc < 58)
RetStr += c;
else if(asc > 64 && asc < 91)
RetStr += c;
else if(asc > 96 && asc < 123)
RetStr+=c;
else if (asc == 32)
RetStr+="+";
else {
CString AddStr;
AddStr.Format("%%%2x", asc);
int iv = (int)AddStr.GetAt(1);
if((int)AddStr.GetAt(1) == 32) {
AddStr.SetAt(1,'0');
}
RetStr+=AddStr;
}
}
return RetStr;
}
static BOOL PostToGateway(
const char* host, // host
name
int port, // port number
const CString& urlstr, //
call scheduler url
const CString& poststr,
// http post string
CString& rcstr) //
returned html page from gateway
{
CInternetSession sess;
try {
CHttpConnection* conn = sess.GetHttpConnection(host, (INTERNET_PORT)port);
CHttpFile* pFile = conn->OpenRequest(CHttpConnection::HTTP_VERB_POST,
urlstr);
pFile->AddRequestHeaders("Content-Type:
application/x-www-form-urlencoded\r\n");
pFile->SendRequest(NULL, 0, (void*)(const char*)poststr,
strlen(poststr));
DWORD dwRet;
pFile->QueryInfoStatusCode(dwRet);
if (dwRet >= 300) {
rcstr = "Failed to connect to Voicent Gateway.
Make sure it is started.";
delete conn;
delete pFile;
return false;
}
// parse return value
CString strRetBufLen;
pFile->QueryInfo(HTTP_QUERY_CONTENT_LENGTH, strRetBufLen);
long max = atol((LPCSTR)strRetBufLen);
if(max <= 0)
max = pFile->GetLength();
// Read Data
char buf[1024];
int len = pFile->Read(buf, 1024);
rcstr = CString(buf, len);
pFile->Close();
conn->Close();
delete pFile;
delete conn;
return true;
}
catch (CInternetException* ex) {
char errbuf[1024];
ex->GetErrorMessage(errbuf, 1024);
rcstr = errbuf;
ex->Delete();
return false;
}
}
// search for pattern [ReqId=*]
static CString GetReqId(const
CString& rcstr)
{
int index1 = rcstr.Find("[ReqId=");
if (index1 == -1)
return "";
index1 += 7;
int index2 = rcstr.Find("]", index1);
if (index2 == -1)
return "";
return rcstr.Mid(index1, index2 - index1);
}
// search for pattern ^made^ or ^failed^
static CString GetCallStatus(const
CString& rcstr)
{
if (rcstr.Find("^made^") != -1)
return "Call Made";
if (rcstr.Find("^failed^") != -1)
return "Call Failed";
if (rcstr.Find("^retry^") != -1)
return "Call Will Retry";
return "";
}
////////////////////////////////////////////////////////////////////
// Voicent
Voicent::Voicent(const char* host, int port)
{
m_host = host;
m_port = port;
}
Voicent::~Voicent()
{
}
// Please refer to http://www.voicent.com/devnet/docs/simpleintf.htm
// for detailed information on these parameters
CString Voicent::CallText(const
char* phoneno, const char* text, BOOL selfDelete)
{
// call request url
CString urlstr = "/ocall/callreqHandler.jsp";
// setting the http post string
CString poststr;
poststr += "info=";
poststr += URLEncode(CString("Simple Text Call ") + phoneno);
poststr += "&phoneno=";
poststr += phoneno;
poststr += "&firstocc=10";
poststr += "&selfdelete=";
poststr += (selfDelete ? "1" : "0");
poststr += "&txt=";
poststr += URLEncode(text);
// Send Call Request
CString rcstr;
if (! PostToGateway(m_host, m_port, urlstr, poststr, rcstr))
return "";
return GetReqId(rcstr);
}
CString Voicent::CallAudio(const
char* phoneno, const char* audiofile, BOOL selfDelete)
{
// call request url
CString urlstr = "/ocall/callreqHandler.jsp";
// setting the http post string
CString poststr;
poststr += "info=";
poststr += URLEncode(CString("Simple Audio Call ") + phoneno);
poststr += "&phoneno=";
poststr += phoneno;
poststr += "&firstocc=10";
poststr += "&selfdelete=";
poststr += (selfDelete ? "1" : "0");
poststr += "&audiofile=";
poststr += URLEncode(audiofile);
// Send Call Request
CString rcstr;
if (! PostToGateway(m_host, m_port, urlstr, poststr, rcstr))
return "";
return GetReqId(rcstr);
}
CString Voicent::CallStatus(const
char* reqId)
{
// call status url
CString urlstr = "/ocall/callstatusHandler.jsp";
// setting the http post string
CString poststr = "reqid=";
poststr += URLEncode(reqId);
// Send Call Request
CString rcstr;
if (! PostToGateway(m_host, m_port, urlstr, poststr, rcstr))
return "";
return GetCallStatus(rcstr);
}
void Voicent::CallRemove(const
char* reqId)
{
// call status url
CString urlstr = "/ocall/callremoveHandler.jsp";
// setting the http post string
CString poststr = "reqid=";
poststr += URLEncode(reqId);
// Send Call Request
CString rcstr;
PostToGateway(m_host, m_port, urlstr, poststr, rcstr);
}
// Call scheduler can launch program also
void Voicent::CallTillConfirm(const
char* vcastexe,
const char* vocfile,
const char* ccode,
const char* wavfile)
{
// call request url
CString urlstr = "/ocall/callreqHandler.jsp";
// setting the http post string
CString poststr;
poststr += "info=";
poststr += URLEncode("Simple Call till Confirm");
poststr += "&phoneno=1111111"; // any number
poststr += "&firstocc=10";
poststr += "&selfdelete=0";
poststr += "&startexec=";
poststr += URLEncode(vcastexe);
CString cmdline;
cmdline = "\"";
cmdline += vocfile;
cmdline += "\"";
cmdline += " -startnow";
cmdline += " -confirmcode ";
cmdline += ccode;
cmdline += " -wavfile ";
cmdline += "\"";
cmdline += wavfile;
cmdline += "\"";
// add -cleanstatus if necessary
poststr += "&cmdline=";
poststr += URLEncode(cmdline);
// Send Call Request
CString rcstr;
PostToGateway(m_host, m_port, urlstr, poststr, rcstr);
}
(Click here to download the sample)
The SimpleCall Sample uses the C++ Simple Interface class
Voicent to make phone calls, check status, and remove call record.
It also uses CallTillConfirm to launch BroadcastByPhone. The
following is the interface.
Just fill in the phone number, select whether to make a text
call or audio call, then click Call Now button. The call request
is sent to Voicent Gateway Call Scheduler. Upon return, the call
record reqId is returned.
Once the reqId is returned, Click on the GetStatus Button to
get the call status. If the call is successful, you should see the
status field showing "Call Made".
Click on the Remove Call Record Button to remove the call
record on the gateway.
|
